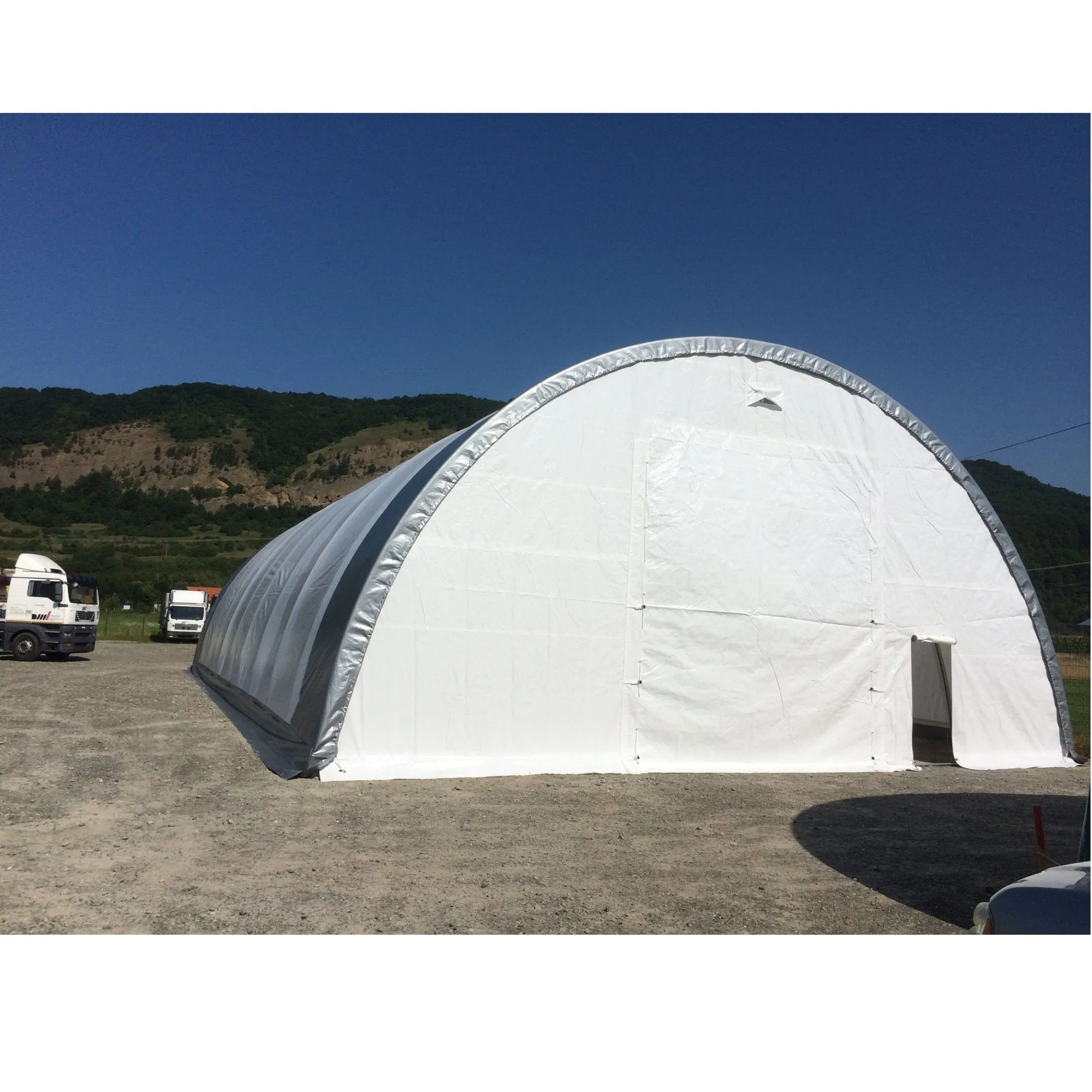

Gold Mountain Single Truss Arch Storage Shelter W40’xL80’xH20’

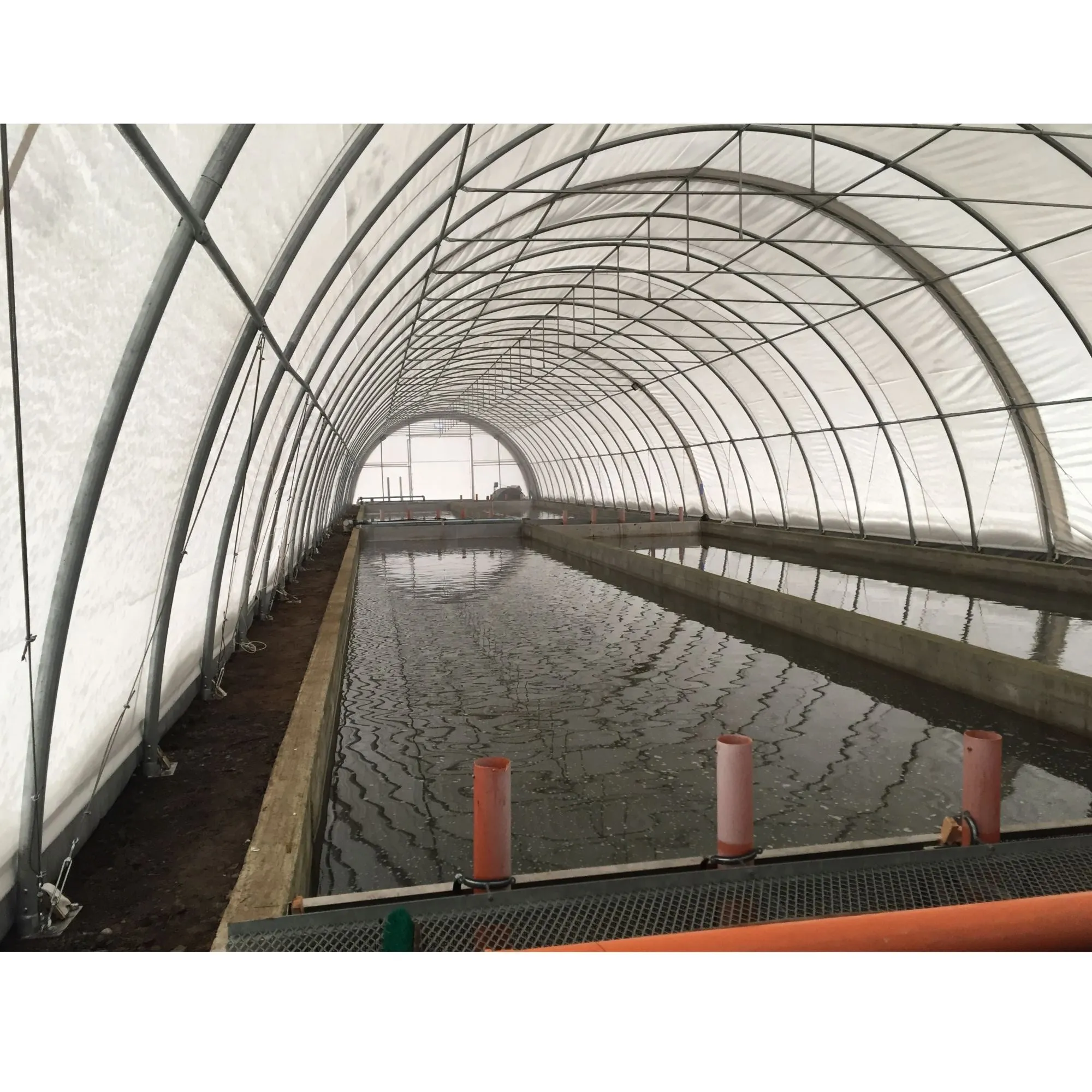

This Gold Mountain Single Truss Arch Storage Shelter W40’xL80’xH20’ is a good option for outdoor agricultural and industrial storage. You can use it for a warehouse, workshop, or storage for grain, sand, coal, raw materials, equipment, livestock, and others. This colossal solution offers a remarkable 100% storage rate, maximizing every inch of space. This canopy storage shelter is in width of 40 ft, length of 80 ft, and height of 20 ft. With a 2-year limited warranty, you can be confident in the quality of your purchase.
Feature
-
Resistant toward water, UV, and fading
-
There is an average of 7-10 years of cover lifespan, depending on the environmental and weather conditions.
-
Style: Freestanding
-
Mechanical doors at two ends
-
A huge capacity for trucks, automobiles, and more bulk storage
-
Protect belongings from wind, snow, and rain
-
CSA/TUV Snow Rating Test Report
-
SGS fabric Certificate
-
Type: Prefabricated Building
-
Certificate: SGS
-
Condition: New
Package Size
-
LxWxH (inch): Box A: 116x30x39; Box B: 116x30x44
-
Weight (lb): 4895
-
A forklift or equivalent is required for unloading
Specifications

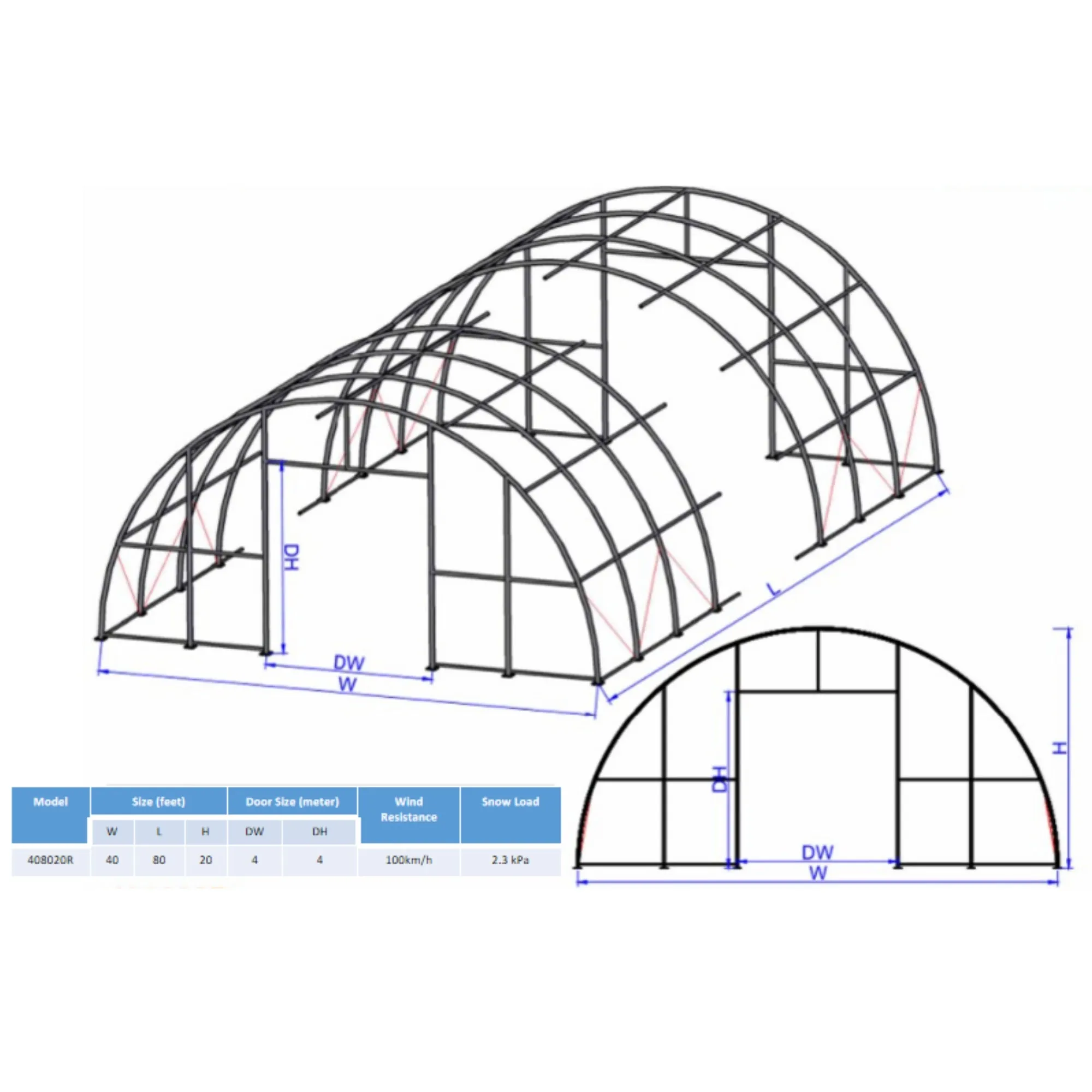

| Model | S408020R | ||||
|---|---|---|---|---|---|

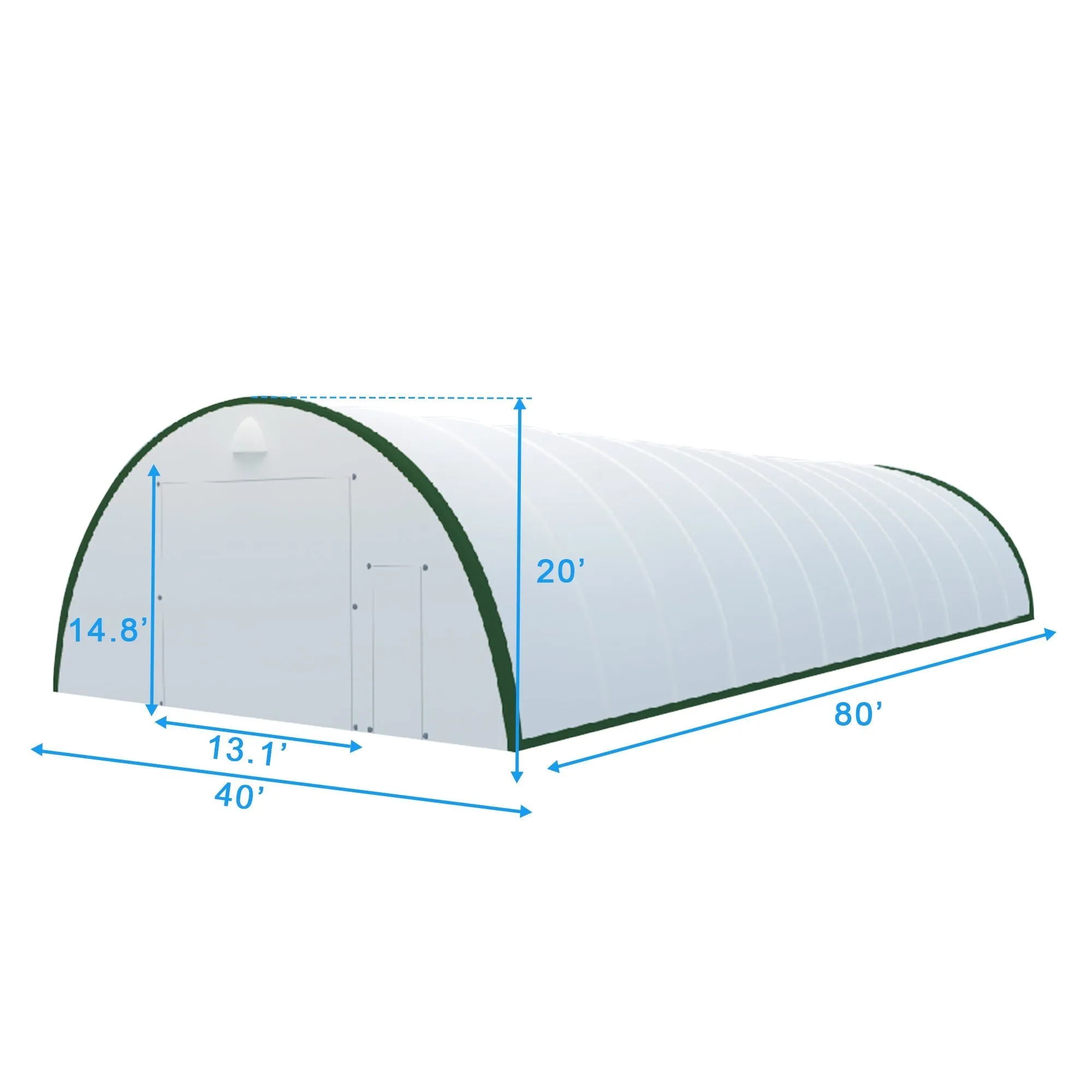

| Dimensions(WxLxH) | 40ft x 80ft x 20ft | ||||
| Door dimension(WxH) | 13.1 ft x 14.8 ft，side door: 2.7ft x 6.3ft | ||||
| Arch Interval | 6.6 ft (2m) | ||||
| Truss Tubes (mm) | Ø86x56x 2.0 | ||||
| Purlin Tubes (mm) | Ø48x1.5 | ||||
| Snow Rating | 1.77 kpa / 37 pounds per sq. foot | ||||
| Max. Wind Speed | 50 miles per hour | ||||
| Frame | Galvanized steel tubes | ||||
| Fabric cover | 300g (11oz) PE (Cover price: $4,275) 450g (16oz) PVC (Cover price: $6,500) 650g (23oz) PVC (Cover price: $8,100) 750g (26oz) PVC (Cover price: $9,200) 900g (32oz) PVC (Cover price: $10,800) |
||||
| Color | White color and green edges | ||||
| Country of Origin | China | ||||
| 408020R |
Test Load | Deflection | |||
| Lb | Kpa | Point A (inch) | Point B (inch) | Point C (inch) | |
| Step 1 | 0 | 0 | 0 | 0 | 0 |
| Step 2 | 1005 | 1.52 | 1.4 | 1.6 | 1.2 |
| Step 3 | 1507 | 2.28 | 2.2 | 2.3 | 1.6 |
| Step 4 | Keep the test load until 30 minutes | ||||
| Step 5 | Remove the test load | 0.6 | 1.1 | 1.2 | |
| Step 6 | The test sample can withstand the applied test load without damage. | ||||
Delivery
Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our
